That's right, you're not hallucinating, Linternals is back! It's been a while, I know, but after some travelling and moving to a new role, I've finally found some time to ramble.
For those of you unfamiliar with the series (or have understandably forgotten that it existed), I've covered several topics relating to kernel memory management previously:
- The "Virtual Memory" series of posts discusses the differences between physical and virtual memory, exploring both the user and kernel virtual address spaces
- The series on "Memory Allocators" covers the role of memory allocators in general before moving onto to detailing the kernel's page and slab allocators
This post might be a little different, as I'm writing this introduction before I've actually planned 100% what I'll be writing about. I know I want to explore the memory management (mm) subsystem in more detail, building on what we've covered so far, but the issue is...
There's a LOT to this subsystem, it's integral to the kernel and interacts with lots of other components. This had me thinking - how do I cover this gargantuan, messy topic in a structured and accessible way?! Where do I begin?? What do I cover???
My plan is to take a leaf out of how I would normally approach researching a new topic like this: start with a high level action (e.g. what the user sees) and follow the source, building up an understanding of the relevant structures and API as we go.
So we'll take a simple action - mapping and writing to some (anonymous) memory in userspace - and see how deep we can go into the kernel, exploring what is actually going on under the hood. Hopefully this will provide an interesting and informative read, giving some insights on some of the key structures and functions of the kernel's mm subsystem.
Contents
- What is Memory Management?
- Overview of The MM Subsystem
- Getting Lost in The Source
- Mapping Memory
- Entering The Kernel
__x64_sys_mmap()
ksys_mmap_pgoff()
vm_mmap_pgoff()
- Next Time
What is Memory Management?
So before we get stuck into the nitty-gritty details, let's talk about what we mean by memory management. Fortunately, unlike some of the topics we've covered (I'm looking at you SLUB), this one's fairly self explanatory: it's about managing a system's memory.
Memory, in this sense, covers the range of storage a modern system may use: HDDs and SSDs, RAM, CPU registers and caches etc. Managing this involves providing representations of the various types of memory and means for the kernel and userspace to efficiently access and utilise them.
Let's take the everyday (and oversimplified) example of running a program on our computer. We can see involvement of memory management every step of the way:
- First, the program itself is stored on disk and must be read
- It is then loaded into RAM, where the physical address in memory is mapped into our process' virtual address space; commonly loaded data will make use of caches
- We've talked about how the kernel and userspace have their own virtual address spaces, with their own mappings and protections which need to be managed
- Then we have the execution of the code itself which will make use of various CPU registers, it will also need to ask the kernel to do privileged things via system calls, so we also need to consider the transition between userspace and the kernel!
Hopefully this highlights how fundamental the memory management subsystem is and gives a glimpse at its many responsibilities.
Overview of The MM Subsystem
Okay, what does this actually look like? The kernel has several core subsystems, one of which is the memory management subsystem. Looking at the kernel source tree, this is located in the aptly named mm/
subdirectory.
I figured we could highlight some of the key files in there to give a sense of the subsystems role and structure in a more tangible context. Like many of my decisions, this turned out to be harder than I thought, but we'll give it a go.
Representing Memory
To be able to manage memory, we need to be able represent it in a way the kernel can work with. There are a number of key structures used by the mm/
subsystem, many of which can be found in include/linux/mm_types.h. This includes:
- Representations for chunks of physically contiguous memory (
struct page
) and the tables used to organise how this memory is accessed. - The
struct mm_struct
provides a description of a process' virtual address space, including its different areas of virtual memory (struct vm_area_struct
). - The
mm_struct
also includes a pointer to the upper most table (pgd_t * pgd
) which is used to map our process' virtual addresses to a specific page in physical memory.
Allocating Memory
With our memory represented, we need a way to actually make use of it! The various allocation mechanisms fall under the memory management subsystem, providing ways to manage the pool of available physical memory and allocate it to be used. This includes:
- The page allocator (
mm/page_alloc.c
) for allocating physically contiguous memory of at leastPAGE_SIZE
. - The slab allocator for the efficient allocation of (physically contiguous) objects, via the
kmalloc()
API.mm/slab.h
andmm/slab_common.c
define the common API, while the SLUB implementation can be found atmm/slub.c
. mm/vmalloc.c
provides an alternative API for allocating virtually contiguous memory and is used for large allocations that may be hard to find physically contiguous space for. E.g.kvmalloc()
willkmalloc()
but usevmalloc()
as a fallback!
Mapping Memory
So far we've touched mainly on how to manage physical memory, but as we know there's a lot more to it than that! Sure, we can map chunks of physical memory into our virtual address space to work on, but what about stuff that sits on disk?
mmap(2)
(mm/mmap.c
) is one-stop shop for userspace mappings and allows us to map physical memory into our processes' virtual address space so we can access it. This can be anonymous memory (i.e. just a chunk of physical memory for us to use) or it can also be used to map a previously opened file into physical memory too!mm/filemap.c
contains some core, generic, functionality for managing file mappings, including the use of a page cache for file data. This can then be utilised by file systems when theyread(2)
orwrite(2)
files for example.- The
ioremap()
API ( is used for mapping device memory into the kernel virtual address space. An example would be a GPU kernel driver mapping some GPU memory into the kernel virtual address so it can access it. If you recall the post on the kernel virtual address space, you'll see that the kernel memory map has a specific region forioremap()
/vmalloc()
'd memory! And why do they share memory? Because under the hoodioremap()
uses thevmap()
API... - The
vmap()
API allows the kernel to map a set of physical pages to a range of a contiguous virtual addresses (within the vmalloc/ioremap space) space. As we've mentioned, this used by bothvmalloc()
andioremap()
. As a result you can find some functionality for all of them inmm/vmalloc.c
.
Managing Memory
We've talked a lot about the building blocks for managing memory, but what about actual high level management of memory? Well there's plenty of that too!
- There are a number of syscalls found in
mm/
related to memory management:mmap(2)
andmunmap(2)
for managing mappings,mprotect(2)
for managing access protections of mappings,madvise(2)
for giving the kernel advise on how to handle mapped pages,mlock(2)
andmunlock(2)
to un/lock memory in RAM etc. - We also have other key management functionality such as how to handle when the system runs out of memory (
mm/oom_kill.c
) and the memory control groups (memcgs,mm/memcontrol.c
) which provide a way to manage the resources available to specific groups of processes. mm/swapfile.c
allows us to allocate "swap" files. This allows the kernel to use the a portion of disk space (the swap file) as an extension of physical memory. When physical memory availability is low, the kernel will "swap" out inactive/old pages of physical memory to the swap file in order to free up physical memory.
Getting Lost in The Source
Alright, here's the plan: we will begin our journey with a simple C program that maps some anonymous memory, writes to it and then unmaps it. Sounds easy enough right?
To refresh, "mapping" memory essentially involves pointing some portion of our processes virtual address space to somewhere in physical memory. This could be a file read into physical memory, but we can also map "anonymous" memory. This is just physical memory that has been allocated specifically for this mapping and wasn't previously tied to a file. But we'll get into that more shortly, for now, here's the code:
#include <sys/mman.h>
int main()
{
void *addr;
addr = mmap(NULL, 0x1000, PROT_READ | PROT_WRITE, MAP_ANONYMOUS | MAP_PRIVATE, -1, 0);
*(long*)addr = 0x4142434445464748;
munmap(addr, 0x1000);
return 0;
}
So what's going on here? We map 0x1000
bytes (i.e. a page) of anonymous memory into our virtual address space, pointed to by addr
. We then write 8 bytes, 0x4142434445464748
, to that address (which points to a page in physical memory). With our work done, we then unmap the anonymous memory and exit.
Okay, now we understand what the program is doing from a user's perspective - we're just writing some bytes to some physical memory we allocated. But what's the kernel actually doing under the hood? The primary API between the userspace and the kernel is system calls, so we can use strace
to understand how our little program interacts with the kernel. Perhaps unsurprisingly, it's not too dissimilar:
> strace ./mm_example
// snip (process setup)
mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f487ed24000
munmap(0x7f487ed24000, 4096) = 0
exit_group(0)
+++ exited with 0 +++
The libc mmap()
and munmap()
calls are just wrappers around the respective system calls, which we can see here. The only part of the program that doesn't use system calls is when we write to the memory, but as we'll soon see, that doesn't mean the kernel isn't involved!
Mapping Memory
So let's start our dive into into the kernel with seeing how memory is mapped.
void *mmap(void addr[.length], size_t length, int prot, int flags,
int fd, off_t offset);
int munmap(void addr[.length], size_t length);
mmap(2)
is the system call which "creates a new mapping in the virtual address space of the calling process", for usage information check out the man page.
In our case we're creating a mapping of 0x1000
bytes, AKA PAGE_SIZE
. We want to be able to read and write to it, so have specified the PROT_READ | PROT_WRITE
protection flags. As we touched on before, we're not mapping a file or anything, so we specify MAP_ANONYMOUS
- we just want to map a page of unused physical memory.
We also specify MAP_PRIVATE
, which in the context of an anonymous mapping means that this mapping won't be shared with other processes, for example if we fork a child process. More broadly speaking it means "Updates to the mapping are not visible to other processes mapping the same file, and are not carried through to the underlying file." [1].
Finally, because it's an anonymous mapping the file descriptor and offset fields are ignored (some implementations require the fd
to be -1, so that's why we set it) as we're not mapping a file in which we might want to map from a specific offset within.
Entering The Kernel
Okay, so we understand the system call from a userspace perspective, how do we go about understanding how it's implemented? Well, without going into detail on how system calls work, we can generally find out a system calls "entry point" in the kernel by grepping the source for SYSCALL_DEFINE.*<syscall name>
:
Check out the macros over in include/linux/syscalls.h
if you're curious; this will also explain how to figure out the actual symbol for kernel debugging (spoiler: it's __x64_sys_<name>
in our case).
That said, mmap(2)
was a terrible example for this little auditing tidbit as there's actually a lot of results for SYSCALL_DEFINE.*mmap
. This is due to architecture specific implementations and legacy versions. If you wanted to be extra sure you can compare the arguments and architecture, or even whip out a debugger and break further in (e.g. on do_mmap()
) [2] and check the back trace:
__x64_sys_mmap()
Now we have a starting point, let's start exploring! __x64_sys_mmap()
starts off validating the off
field, making sure it's page aligned (i.e. a multiple of PAGE_SIZE
) [0] and then shifting it so that ksys_mmap_pgoff()
gets the page offset (instead off the byte offset) [1].
ksys_mmap_pgoff()
Well this one's nice and simple for us anonymous mappers! As there's no file
involved and we're not using huge pages[3] we cruise on into vm_mmap_pgoff()
.
vm_mmap_pgoff()
Hopefully we're warmed up now, as we've got a bit more going on here!
Fetching Our mm_struct
First we fetch a reference to an mm_struct
[0], which as we covered earlier, is a key structure that provides a description of a process' virtual address space.
But whose mm_struct

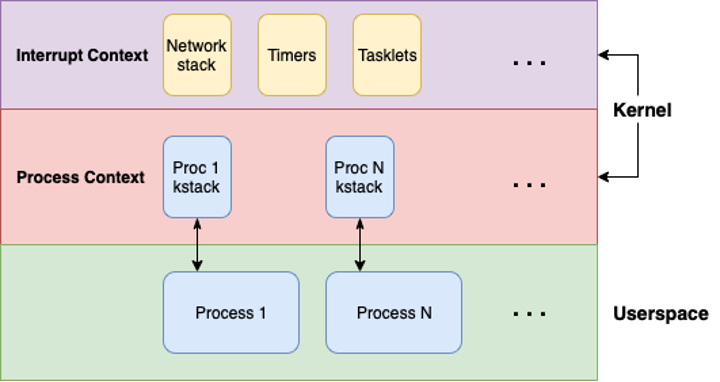

are we grabbing? The kernel maintains a thread (i.e. a kernel stack) for each userspace process. When a userspace process makes a system call, the kernel executes in the "context" of that process, using it's associated kernel stack.
Along with its own kernel stack, each process has a task_struct
which keeps important data about the process such as its mm_struct
. When the kernel is executing in a processes' context, it can fetch the task_struct
of the associated userspace process via current
.
current
is a definition for get_current()
which returns the task_struct
of the "current" kernel thread, from there we can fetch our mm_struct
from the task's mm
member.
A Bit Of Security
Next up we do some security checks [1], via security_mmap_file()
. Generally, if we see a kernel function with the security_
prefix it's a hook belonging to the kernel's modular security framework[6].
Looking at the code we'll notice two definitions[4][5], depending on if CONFIG_SECURITY
is enabled. We'll consider the default case, where it is enabled:
If we look for references to mmap_file
, we can see these hooks are registered by the LSM_HOOK_INIT()
macro and that different security modules implement their own mmap_file
hooks (e.g. capabilities, apparmor, selinux, smack).
Multiple security modules can be active on a system: the capabilities module is always active, along with any number of "minor" modules and up to one "major" module (e.g. apparmor, selinux). We can check which one's are active via /sys/kernel/security/lsm
, the output on my VM is:
$ cat /sys/kernel/security/lsm
lockdown,capability,landlock,yama,apparmor
Of these, the capability and apparmor security modules both define hooks for mmap_file
. In this case, both hooks will be run when security_mmap_file()
is called.
I hope that was interesting, because in our example neither of these checks actually do anything. Capabilities' cap_mmap_file()
always returns a success and apparmor's apparmor_mmap_file()
only does checks if a file
is specified.
Locking
Before we delve another call deeper into the mm subsystem, let's quickly talk about locking. The call to do_mmap()
is protected by the mmap write lock [2]:
Locking is extremely important within the kernel and is used to protect shared resources by serialising access or prevent concurrent writes. Insufficient locking can lead to all sorts of undefined behaviour and security issues.
mmap_write_lock_killable()
provides a wrapper for the mm->mmap_lock
, which is a R/W semaphore. In laymans term, multiple "readers" can take this lock (i.e. if the calling code is just planning to read the protected resource) or a single writer can [7].
So what does the mmap lock actually protect? That's a great question and I'm not sure there's a definitive, detailed "specification" or anything for this (?). More generally though, it protects access to a processes address space. We'll understand more about what that entails as we delve deeper, but think add/changing/removing mappings as well as other fields within the mm
structure too [8].
For the curious, the _killable
suffix indicates that the process can be killed while waiting for the lock[9][10]. In which case the function returns an error, which is caught here.
- https://man7.org/linux/man-pages/man2/mmap.2.html
- If you're testing this at home, be mindful that other places will call
do_mmap()
, particularly when running a program - https://docs.kernel.org/admin-guide/mm/hugetlbpage.html
- https://elixir.bootlin.com/linux/v6.11.5/source/include/linux/security.h#L1053
- https://elixir.bootlin.com/linux/v6.11.5/source/security/security.c#L2849
- https://docs.kernel.org/admin-guide/LSM/index.html
- Checkout Linux Inside's deep dive into semaphores here.
- LWN has a good article, "The ongoing search for mmap_lock scalability" (2022), on the importance of the
mmap_lock
and attempts to scale it - The
_killable
variant for rw semaphores was actually added in 2016, you can checkout the initial patch series for details - "The Linux Kernel Locking API and Shared Objects" (2021) by Pakt is a nice resource on locking if you want to dive into the topic a bit more
Next Time
Hopefully this isn't too much of a cliff hanger, but this post has been in my drafts for far too long now and I fear if I don't post it soon it'll never get finished 💀.
I went for a bit of a different approach with this topic, due to the scope of the mm subsystem. The aim was to use a simple case study to provide some structure and context to an otherwise complex topic. I also wanted to present an approach and workflow that could perhaps be transferable to researching other parts of the kernel, if that makes sense?
If folks are interested in a part 2, we'll continue to delve deeper into the mm subsystem, carrying on where we left off with do_mmap()
. We've barely scratched the surface so far! I'd love to go into more detail on how mappings are represented and managed within the kernel and then move onto paging and who knows what other topics we stumble into.
As always feel free to @me (on X, Bluesky or less commonly used Mastodon) if you have any questions, suggestions or corrections :)
